Face Clip: All-in-one sinuous spring face clip, collated with hook leading

Fastener Type:

Spring clip - rolls

Per Roll:


Rolls Per Pallet:


Product # Description

The FaceClipper 1000 is an economical, high-output solution for your clipping needs. The single-head clipper installs clips into furniture rails for sinuous spring attachment. This versatile machine clips both straight and curved rails, and the adjustable anvil allows you to clip rail heights from 5/8” to 3-1/4” (15.9mm to 82.6mm). The FC1000 is easy to load, using all-steel face clips featuring Vertex’s patented polycord collation technology.

The FC1000 is easy to operate and can produce outstanding results with its all-in-one design that can handle both back and seat rails. This pneumatic clipper uses no electricity and has few moving parts, meaning lower service costs to run and maintain. And by applying clips more accurately and efficiently than hand application, the FC1000 gives you greater productivity in your operation.


The FaceClipper 2000 is a semi-automatic machine that easily installs clips onto furniture rails for sinuous spring attachment. The FC2000 is easy to use, requiring only compressed air to operate and deliver reliable clips three times faster than hand applications. The all-steel face clips used by the FC2000 feature our patented polycord collation technology, high-profile upturned edges, and an extended polypropylene liner.

With an adjustable-height clipping head, the FC2000 can accommodate rails from 5/8” to 3” (15.9mm to 76mm) in height. A removable entry guide allows for clipping curved and irregularly shaped rails of hardwood, softwood, plywood, and composites, in lengths up to 96” (2438mm). The straightforward design of the machine is easy to operate and lets you deliver clips consistently spaced. No electricity usage and semi-automatic functioning mean fewer moving parts and lower service costs, saving you time and money.


The FaceClipper 3100 is the fastest and most precise clipping machine in the world. With the ability to clip up to three times faster than other automatic clipping machines, the FC3100 has set a new standard for the industry. Its advanced design is easy to operate and able to handle the most challenging of clipping needs with ease.

An intelligent microcomputer control and LCD touchscreen allow you to interface with the machine and program runs with accuracy and speed. The advanced servo motor runs coolly and efficiently, and an exit stacker system controls the exiting flow of clipped rails, allowing you to continue loading without having to stop and remove completed rails.


The FaceClipper 4000 is a semi-automatic, multi-tool clipping machine that installs clips into furniture rails for sinuous spring attachment. You can set up the FC4000 to use six clipping heads to tackle any of your clipping needs. All clipping heads fire simultaneously, letting you clip a whole rail in one second, and move to accommodate various clip patterns and rail curvatures.

With the FC4000, you’ll see an increase in your clipping speed of four times more than hand applications. This machine is easy to use, reliable, and uses only compressed air to operate, so you have fewer moving parts to attend to. Use our all-steel Face Clips individually or with the FC4000, which features our patented polycord collation technology, high-profile upturned edges, and extended polypropylene liner.

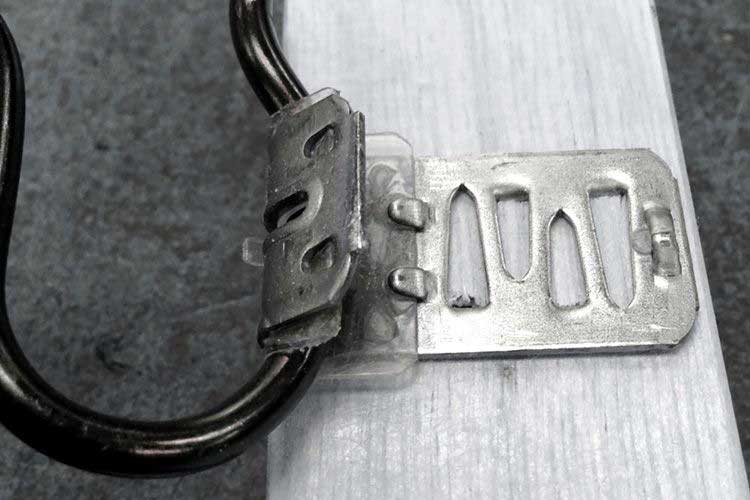

The Versa Clipper machines use the high-strength, all-steel VersaClip, featuring:

  • 19-gauge steel with triple embossment that provides clip strength, durability, and holding power.
  • Integral nails that enter the rail at different points to prevent splitting and provide superior holding power.
  • High-profile upturned edges that provide an excellent target for easy spring-up and hammer closing.
  • Extended polypropylene liner that extends past the ends of the clip to prevent metal-to-metal noise.
  • Liner and spring locks that mechanically lock liner in place and accurately position sinuous springs in clip.
  • Radius edges that conform to sinuous spring shape.

Let us help you make sure you choose the right product for your needs.

Call us at 1-(847) 768-6139 or message us through our CONTACT FORM.
